Tubing parts

Connector

Product Number	Specification
XRHTF-01	Hand-tight EXP® fitting (Hand-tight nut and titanium hybrid ferrule included)

*Fitting for connecting system and main column/guard cartridge is also available.

Product Number	Specification
XRHTF-05	Titanium hybrid ferrule (5/pack)

*EXP® is a registered trademark of Optimize Technologies, Inc.

Features

A ferrule integrated into a connector
Handy connector 1 resists pressure to about 21 MPa. Handy connector 1 is suitable for tubing systems of relatively low pressure. Connection to a tubing system is easy because a ferrule is integrated into the connector.
Metal free
The whole connector is made from PEEK. Handy connector 1 is suitable for metal-free tubing systems using PEEK tubes.

Product Number	Specification
XRP0203	For tubing systems of 1/16" outer diameter, 10/pack

Features

High pressure resistance and made from stainless steel
Handy connector 2 resists pressure to about 42 MPa. Handy connector 2 is suitable for connection to the injection side of a column, to which high pressure is applied. It is also useful for connection of a guard column or a precolumn filter.
Metal free
The ferrule at the wetted part of the connector is made from PEEK. Handy connector 2 is suitable for metal-free tubing systems using PEEK tubes.
Replaceable ferrule
Ferrule needs to be replaced only when it deteriorates, and not the entire connector.

Product Number	Specification
XRP0204	For tubing systems of 1/16" outer diameter, 2/pack
XRP0205	Spare PEEK ferrule, 10/pack

Product Number	Specification
XRCP1602	1/16" outer diameter, 0.25 mm inner diameter
XRCP1605	1/16" outer diameter, 0.5 mm inner diameter
XRCP1620	1/16" outer diameter, 0.8 mm inner diameter

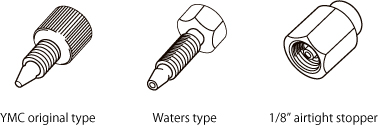

Airtight stoppers are used to prevent column contents from drying. Please use a stopper appropriate for each column connection type.

Product Number	Specification
XPMSY	YMC original type (PEEK), 5/pack
XPMSW	Waters type (stainless), 5/pack

Product Number	Specification
XPMS8	Female nut, 2/pack
