YMC-UltraHT Hydrosphere C18 / Hydrosphere C18

The combination of ultra pure silica and unique selectivity leads to a stationary phase that fulfills the relevant requirements of HPLC users.
Minimal metal content and very low concentrations of residual silanols make this an ideal phase for the analysis of basic pharmaceuticals and chelating compounds even under LC-MS conditions(e.g. separation in non-phosphate buffered systems).
In addition the possibility to separate polar compounds under highly aqueous mobile phase conditions without loss in retention, plate counts and peak performance greatly enhances the versatility of Hydrosphere C18.
These characteristics will allow Hydrosphere C18 to be used for a wide range of applications of compounds with polar functional groups. 2 μm particle size columns YMC-UltraHT series are specifically designed for high-speed and high throughput analysis.


Particle size : 2 µm, 3 µm, 5 µm
Pore size : 120 Å
Carbon contents : 12%
Usable pH range : 2.0-8.0


  • Based on highly inert, ultra pure, pH neutral silica
  • "Hydrophilic" C18 surface for enhanced polar selectivity
  • Extremely rigorous physical and chemical specification
  • suitable for conventional reversed phase and highly aqueous application
  • Pharmaceutical method development

Reproducibility of retention time under the 100% aqueous mobile phase

Reproducibility of retention time under the 100% aqueous mobile phase

After the operation, the column was stored overnight (about 15 hours)

  1. Cytosine
  2. Uracil
  3. Guanine
  4. Thymine
  5. Adenine
Column size : 150 X 4.6 mmI.D.
Eluent : 20 mM KH2PO4-K2HPO4 (pH 6.9)
Flow Rate : 1.0 mL/min
Temperature : 37ºC
Detection : UV at 254 nm

Retention time of nucletic acid bases is compared before and after one night standing in 100% water. Hydrosphere C18 provides stable retention and remarkable reproducibility while conventional ODS has declining retention when we compare retention time of adenine in the initial chromatograms with that of chromatograms generated the next day.

Exceptional chromatographic behavior
The separation of polar compounds under highly aqueous mobile phase conditions is not reproducible with conventional reversed-phases materials. A proprietary derivertization procedure enables Hydrosphere C18 to be penetrated by water without losing its brushlike C18 chains. This behavior has the effect that members of this group of very polar compounds can be separated from each other with excellent peak shape and remarkable reproducibility. Typical applications where no organic modifier is required including nucleic acid bases, nucleotides, organic acids,catecholamines, vitamins, peptides, etc.

page top

Different separation feature from conventional ODS

Hydrosphera C18&Pro C18

  1. Toluene
  2. Testosterone
  3. n-Propylbenzene
  4. Acenaphthene
  5. n-Butylbenzene
  6. Amitriptyline hydrochloride

Brand IV&Brand V

Column size : 150 X 4.6 mmI.D.
Eluent : 20 mM KH2PO4-K2HPO4 (pH 6.9)/methanol (35/65)
Flow Rate : 1.0 mL/min
Temperature : 37ºC
Detection : UV at 254 nm

Chromatograms of Hydrosphere C18 and conventional ODS are compared by using a test mixture containing compounds that have different properties.
The chromatograms show that Hydrosphere C18 has a different separation profile of elution sequence or retention time or resolution etc. from conventional ODS.

page top

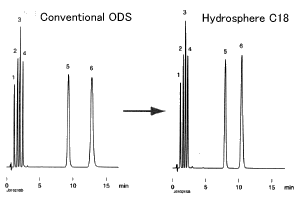

Short time analysis

Convetional ODS&Hydrosphere C18


  1. Nordihydroguaiaretic acid(NAGA)
  2. Butyl hydroxyanisol(BHA)
  3. 4-Hydroxy-2,6-di-tert-butylphenol(HMBP)
  4. n-Octyl gallate (OG)
  5. Dibutyl hydroxytoluene (BHT)
  6. n-Dodesyl gallate (DG)
Column size : 50 X 4.6 mmI.D. (3 µm, 120 Å)
Eluent : acetonitrile/methanol/5% acetic acid (35/35/30)
Flow Rate : 1.0 mL/min
Temperature : 30ºC
Detection : UV at 280 nm

Hydrosphere C18 allow us to shorten the analysis time by 20% compared with conventional ODS for the separation of highly hydrophobic compounds.

page top

2 µm columns applicable to conventional LC systems

Hydrosphere C18 with 2 µm particle size is available, and it realized column efficiency with 60% less than column pressure as same as that of sub-2 µm used for UHPLC.
Ultra fast analysis can be performed by using Conventional LC systems, since Hydrosphere C18 can use in lower pressure than that in sub-2 µm. Columns with 3 mmI.D., which can be applied to conventional systems are available.

Van Deemter curves/Column pressure

Column : 50 X 2.0 or 2.1 mmI.D.
Eluent : acetonitrile/water (60/40)
Temperature : 25ºC
Sample : Butyl benzoate
