Flow reactor

Flow reactor systems
KeyChem Series

KeyChem is an abbreviation for keyboard chemistry. “Keyboard chemistry” has been coined by YMC by combining the words “Keyboard” (as in computer control) and “Chemistry”, to represent the new concept of a chemical reaction methodology that YMC is creating. Central to this concept is the microreactor system, which allows computer-controlled flow reaction and enables the setting of all the conditions of a chemical reaction from start to finish, via the keyboard of a computer.

Heterogeneous flow reactor systems
KeyChem-Integral

  • Single system plays 4 roles : Reaction of Gas-Liquid,Liquid-Liquid, Solid-Liquid and Solid-Liquid-Gas
  • Porous Teflon® (AF2400) is used for the reactor of Gas-Liquid reaction
  • Flow rate, temperature and pressure are controllable
  • The number of units and combinations are selectable

Micro flow reactor systems

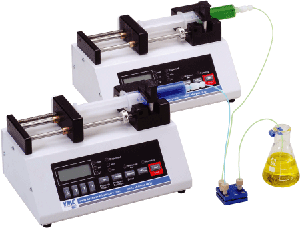

KeyChem-Basic

Perform flow reaction easily

  • Micro-flow starter kit to get started quickly
    Type-1 : Simple system
    Type-2 : Standard system
    Type-3 : Two-stage reaction system
    Type-4 : System equipped with thermal control unit
  • Other types are available upon request.

Micro flow reactor systems
KeyChem-L/KeyChem-LP

Flow reactor system by PC control

  • Superior mixing, precise thermal control, continuous-flow reactor
  • Set conditions of reaction by numerical entry into PC controlled system
    KeyChem -L : Syringe pump type for stable pumping
    KeyChem -LP : Plunger pump type for continuous pumping
  • Optional extra : Fraction collector

Hydrogenation flow reactor systems
KeyChem-H

Now available safe and highly-efficient hydrogenation reactor

  • Hydrogen supply type using harmless hydrogen storing alloy
  • High level contact of catalyst and raw materials by catalyst column
  • Flow rate and backpressure are controllable.

Flow photoreactor systems
KeyChem -Lumino

Expand possibility of photoreaction by superior efficiency of light irradiation

  • Uniform light irradiation to sample, introducing micro channels
  • Materials of light source and reactor are selectable.
  • Achieve precise photoreaction

Product Comparison Table

Wide variety including Liquid-Liquid reaction system for rapid mixing of reaction liquid, and system specializing in hydrogenation or photoreaction

  Reaction type Other
Liquid-Liquid Gas-Liquid Solid-Liquid Gas-Solid Photoreaction PC Control Customization
KeyChem-Basic YES NO NO NO NO NO YES
KeyChem-L/LP YES NO NO NO NO YES YES
KeyChem-H NO NO YES YES NO YES YES
KeyChem-Lumino NO NO NO NO YES YES YES
KeyChem-Integral YES YES YES YES NO YES YES

*The above products can be customized to add reaction
